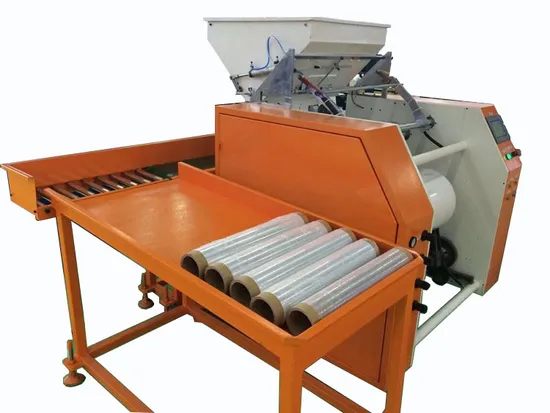

Automatic Stretch Wrapping Film Rewinder Machine

Automatic Stretch Wrapping Film Rewinder Machine

Overview This is an automatic rewinding machine which is designed for rewinding the pallet wrapping used stretch film. I
SHARE
Send inquiry

Description

  • Overview
  • Product Description
  • Product Features
  • Product Parameters
Overview
Basic Info.
Model NO. FJ-450A
Speed 1000m/Minute Max.
Core Diameter 50 / 75mm
Unwind Roll Od 600mm Max.
Wind Roll Od 200mm Max.
Transport Package Plywood Case
Specification web width 450mm - 500mm
Trademark KOPY
Origin China
HS Code 845150
Production Capacity 1000 Sets/Year
Product Description
This is an automatic rewinding machine which is designed for rewinding the pallet wrapping used stretch film. It rewinds the film finish rolls acording to set length, and cut the film and change core tubes Automatically. Maximum speed 1000m/minute.

Product Description

Product Features

Rotating belt drives the material roll to unwind film from the roll surface, avoiding film stretch.

Electric resistance wire cutting the film automatically

changing paper core tubes automatically

Automatic stop at the set winding length.

Product Parameters

Workable film roll width (mm) 300 - 500mm
Max. unwind roll diameter (mm) 400
Film thickness (mm) 0.008 - 0.05
Rewind finish roll length (m) 10 - 500m/roll
Machine speed (m/minute) 0 - 900 adjustable
Material roll core diameter (mm) 76
Finish roll core diameter (mm) As per request
Power (kw) 4kw
Machine dimension (mm) 1400 x 1800 x 1520
