Coreless Stretch Film Rewinder (CSFR

Basic Info.

Model NO.	CSFR-600
Max Mother Roll Width	600mm
Mother Roll Core	3"
Mother Roll Outer Diameter	400mm
Finished Roll Core	1.5′′-2′′-3′′
Finished Roll Max Outer Diameter	120mm
Voltage	380v, 3 Phase or 22v Single Phase
Power	1.5kw
Speed	0-600mm/Min
Pneumatic	0.4~0.6mpa
Transport Package	Crate
Specification	CE ROHS SGS
Trademark	PPD
Origin	China
HS Code	84411000
Production Capacity	10 Units/Month

Product Description

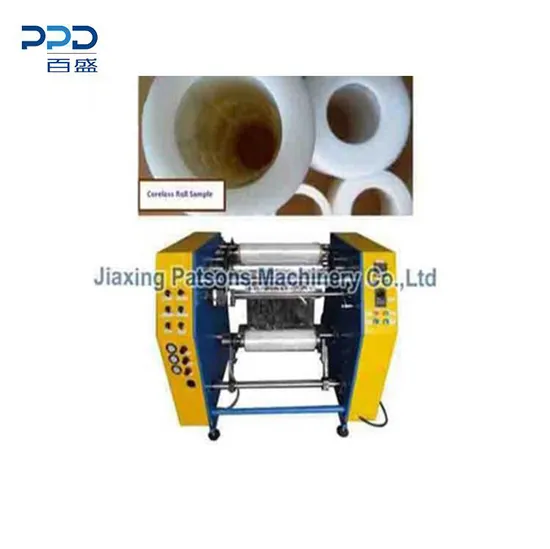

Coreless Stretch Film Rewinder (CSFR-600)

It is 2 multifunction in one machine for rewinding of stretch film with the paper ocre in side or without paper core inside to reduce the production cost to save the paper core, By speed ratio of roller guiding, it can rewind the jumbo roll can be to hand rolls.
This is very ideal machine for starting the production with lower investment, user friendly, no skilled operator request.

Technical Data:

Coreless Stretch Film Rewinder (CSFR-600)

Max mother roll width	600mm
Mother roll core	3''
Mother roll outer diameter	400mm
Finished roll core	1.5''-2''-3''
Finished roll max outer diameter	120mm
Voltage	380v, 3 phase or 22v Single phase
Power	1.5kw
Speed	0-600mm/min
Pneumatic	0.4~0.6Mpa
